IMPORTANT NOTE: ALL GAS APPLIANCES
MUST BE INSTALLED BY A QUALIFIED GAS SAFE GAS ENGINEER. IF
APPLIANCE IS
DIY INSTALLED THE GAS INSTALLATION
MUST BE INSTALLED BY A COMPETENT PERSON
& INSPECTED FOR SAFETY BY A GAS SAFE ENGINEER
BEFORE
USE.
Contents, specifications and availability are subject to change
serving the manufacturers technical improvement.
LPG BUILT IN HORIZONTAL GAS TANKS
Built
in propane gas tanks provide the convenience of larger gas
storage quantities without the difficulties of lugging heavy
bottles in and out of small lockers for refilling.
By
having the ability to buy bulk LPG liquid gas you will save
money, as bulk gas is much cheaper than buying it in a usual
refillable bottle. Refilling your gas tank is
as
easy as filling up your vehicle tank with fuel, only much
cheaper. There is a UK and Europe wide network of gas refilling
stations with the numbers growing weekly.
This
makes supply of gas in any country so much easier than carrying
numerous alternative bottles for each country you visit. Our red
tanks are designed for vapour
offtake to provide gas for domestic equipment (cooking and
heating etc.). Our red tanks are not suitable for engine gas
conversions; these require a liquid offtake
black
gas tank, which we do not supply.
GAS TANKS CAN BE DIY
INSTALLED BUT SHOULD BE TESTED AND COMMISSIONED BY A QUALIFIED
LPG GAS
ENGINEER BEFORE USE.-
TANK CODE MOUNT FRAME CAPACITY LTR DIAMETER LENGTH
GT020-200-717
GT020-200 FRAME
20 200 717
GT023-230-630
GT023-230 FRAME
23 230 630
GT025-200-884
GT025-200 FRAME
25 200 884
GT030-200-1052
GT030-200 FRAME
30 200 1052
GT030-270-607
GT030-270 FRAME
30 270 607
GT038-230-1014
GT038-230 FRAME
38 230 1014
GT040-270-792
GT040-270FRAME
40 270 792
GT040-300-646
GT040-300FRAME
40 300 646
GT055-270-1069
GT055-270FRAME
55 270 1069
GT055-360-632
GT055-360FRAME
55 360 632
GT060-300-940
GT060-300FRAME
60 300 940
GT060-315-869
GT060-315FRAME
60 315 869
GT070-300-1088
GT070-300FRAME
70 300 1088
GT070-315-1004
GT070-315FRAME
70 315 1004
GT085-360-944
GT085-360FRAME
85 360 944
GT100-360-1099
GT100-360FRAME
100 360 1099
GT116-360-1265
GT116-360FRAME
116 360 1265
GAS RV RED REFILLABLE BOTTLES (2 HOLE)
Same design and
dimensions as gaslow number one bottle just now in red.
GRB06G
GAS IT REFILLABLE 6KG
BOTTLE WITH GUAGE
GRB11G
GAS IT REFILLABLE 11KG
BOTTLE WITH GUAGE
|
|
|
|
|
GTEUK
Adaptor converts
GT630 to suit
some UK
filling stations |
GFRIT
Adaptor for refilling
in France and Italy
|
GSPAN
Adaptor for refilling
in Spain
|
|
|
|
|
|
GT630
Europe standard
filling quick connector
|
G643
Adaptor for filling from
bayonet nozzle.
|
GT622
Remote electronic
level indicator.
12 volt. 4
HOLE TANKS
BOTTLES
ONLY.
|
|
|
|
|
|
EXTERIOR 70mm
fill box
GTFILLBXK
Black
GTFILLBXW
White
|
GT620
Exterior Remote
filling point elbow
|
GT623
Exterior Remote
filling point straight
|
|
|
|
|
|
Remote fill
point JIC Fast
Fill connecting
hose
GT621150
1.5 mtr
GT621125
1.25mtr
GT621050
0.5 mtr
|
GRBLFKANG
Remote In
Locker fill
point with angled
bracket and 0.5m
fast fill JIC
hose
|
GRBLFKSTR
Remote In
Locker fill
point with straight
bracket and 0.5m
fast fill JIC
hose
|
|
|
|
|
|

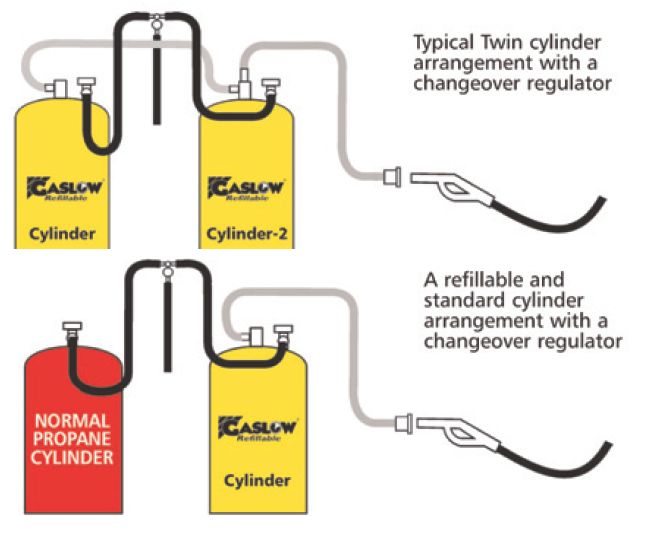

GRBTWINFILL
2nd bottle fill
tee and JIC fast fill hose
|

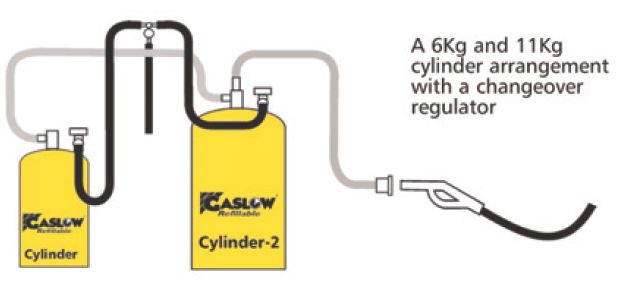

GRB611KIT
6kg & 11kg kit
|
Twin 11kg or 6kg
kit
GRB1111KIT
Twin 11kg
GRB66KIT
Twin 6kg
|
THE
EN1949 REQUIREMENTS
EN 1949
is the new standard for the installation of LPG into touring
caravans & motorhomes. Amongst other requirements, EN1949
harmonises - across Europe - the installation of LPG in touring
caravans and motorhomes. From the 2004 season onwards (vehicles
manufactured from September 2003), your new Caravan or Motorhome
will be supplied ready-fitted with a special bulkhead mounted
regulator (
GREG524),
labeled 30mbar, which has attached to it a “pigtail” (GPTP25
or
GPTB27)
connector for UK LPG cylinders. This ensures not only that you
have the correct regulator at the correct pressure for your LPG
powered appliances, but also that it is checked along with the
rest of the installation as part of the manufacturer’s gas
safety checks. When traveling in Europe for a safe connection to
a European cylinder, you will need to obtain a “pigtail”,“pigtail
to bottle adaptor” or “foreign cylinder adaptor” that fits the
cylinders available in that country (see below or page 58).
Simply connect adaptor to the end of an existing Butane 21.8 LH
UK “pigtail” while you are using the European cylinder. When you
want to change back to the UK cylinder, simply swap the pigtail
or adaptor back again. Therefore you no longer need to replace
the regulator. An easier option is to install Gaslow refillable
cylinders. They stay in your gas compartment and are refilled at
normal fuel filling stations from their Autogas pumps.
THE
EN1949 REGULATOR SYSTEM FROM C.A.K.
The
bulkhead mounted fixed regulator
GREG524
has a capacity of
1.5kg/hour and operates at 30mbar.
The
inlet connection is a standard W20 thread, outlet connection is
for 8mm or 10mm copper pipe. For
the
inlet you need a pigtail assembly that fits your cylinder
connection. For propane you need pigtail
GPTP24
or 25
and for
butane you need pigtail
GPTB26 or 27.
With this you now have a standard EN1949
regulator kit.
GREG5248
8mm EN1949
FIXED REGULATOR 1.5KG/HR 30MBAR
(A)
GREG52410
10mm
EN1949 FIXED REGULATOR 1.5KG/HR 30MBAR
(A)
GPTP24
CYLINDER
PIGTAIL POL PROPANE 750MM
(C)
GPTP25
CYLINDER
PIGTAIL POL PROPANE 450MM
(C)
GPTB26
CYLINDER
PIGTAIL 21.8LH BUTANE 750MM
(D)
GPTB27
CYLINDER
PIGTAIL 21.8LH BUTANE 450MM
(D)
GPTP6060
CYLINDER
PIGTAIL POL PROPANE 1000MM
(C)
GPTP6065
CYLINDER
PIGTAIL POL PROPANE 1500MM
(C)
GPTB6030
CYLINDER
PIGTAIL 21.8LH BUTANE 1000MM
(D)
GPTB6035
CYLINDER
PIGTAIL 21.8LH BUTANE 1500MM
(D)

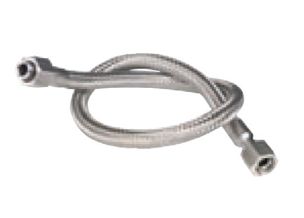

STAINLESS STEEL PIGTAILS
An
alternative to the standard rubber/pvc pigtails is to fit
stainless steel versions
with a
20 year service life. Butane 21.8LH connection, PROPANE POL
GSPT6010B
STAINLESS PIGTAIL 21.8LH BUTANE 450MM
GSPT6020B
STAINLESS PIGTAIL 21.8LH BUTANE 750MM
GSPT6035B
STAINLESS PIGTAIL 21.8LH BUTANE 1500MM
GSPT6036B
STAINLESS PIGTAIL 21.8LH BUTANE 2000MM
GSPT6040P
STAINLESS PIGTAIL EASYFIT PROPANE 450MM
GSPT6050P
STAINLESS PIGTAIL EASYFIT PROPANE 750MM
PIGTAIL
TO BOTTLE ADAPTORS
PIGTAIL
TO BOTTLE ADAPTORS
These
adaptors will allow various bottles to be attached to fixed
regulator using the Standard 21.8LH Butane
pigtails. The 21mm clip on is the standard clip on for 7 & 15kg
Calor. 20mm for some UK bottles & 6kg ELF,
MALICE &
TWINNY in France. 27mm fits BP Gaslite Patio Gas & BBQ Gas in
the UK. 27T 27mm fits French
Le Cube
and some Portuguese cylinders as well as BP Gaslite Patio Gas &
BBQ Gas in the UK. Jumbo
Adaptor
connects to Norwegian, Spanish, Portuguese & Southern Irish
cylinders.
GCYADG
ADAPTOR BUTANE
PIGTAIL TO CAMPING GAZ
(E)
GCYADC
ADAPTOR BUTANE
PIGTAIL TO CLIP ON CYLINDER 21MM
(F)
GCYADC20
ADAPTOR BUTANE
PIGTAIL TO CLIP ON CYLINDER 20MM
(F)
GCYADC27
ADAPTOR BUTANE
PIGTAIL TO CLIP ON CYLINDER 27MM
(F)
GCYADJBO
ADAPTOR BUTANE
PIGTAIL TO JUMBO CLIP ON CYLINDER
(G)
GCYADC27T
ADAPTOR BUTANE PIGTAIL TO ELBOW TOP CLIP ON
CYLINDER
27MM
(J)
AUTOMATIC CHANGEOVER UNIT FOR TWO BOTTLES
As an
option you can add an automatic change over unit
GCORE92
to the top of your EN1949
regulator. To fit
this
unit you will need one pigtail for each of the bottles in use.
W20 threads in W20 nut to connect to regulator.
GCORE92
AUTOMATIC
CHANGE OVER UNIT(H)
MANUAL
CHANGEOVER UNIT FOR TWO BOTTLES
An
alternative option is to add a manual changeover block with a
built in gaslow contents gauge. To install this you will need
one
pigtail for each of the bottles in use. W20 threads in W20 male
threads in from pigtails W20 female nut to connect to regulator.
GRFC1630RFL
MANUAL CHANGE OVER & GASLOW GUAGE
GLG1625B
MANUAL CHANGE
OVER GUAGE BUTANE
GLG5050
SWITCH 2 MANUAL CHANGEOVER IN HOSE
For
pre-2004 models, this is an alternative twin gas cylinder
connection system which uses your existing regulators. It is
designed
for the
low-pressure side of your gas system after your regulators. The
two supply inlets are controlled by a two-way tap and
can use
either type of LP gas - one side can be Propane, the other side
Butane. Switch-2 makes changeover easy and allows
the
empty cylinder to be removed without switching off the supply.
It is supplied with 3 hose clips and is fitted with a mounting
bracket.
GAS
OUTLET BOX WITH VALVE & QUICK CONNECTOR
To meet
the requirements of EN1949 for manufacturers a new gas outlet
box has been developed. The new
outlet
box contains our quick connector gas tap
GQCT8.
If you don’t wish to cut
through your sidewall then
a
GQCT8
can be fitted into a
locker to provide the gas outlet. This change is to meet the
requirements of secondary isolation on the gas when quick
connect hose is
disconnected. Our original
GEOB8
gas outlet box can still
be fitted by DIY converters and
as a
replacement unit. Hose tail quick connector to be ordered
separately.
GTOB8
GAS OUTLET BOX
EN1949 WITH QUICK CONNECTOR & VALVE
GTOBCN8
HOSE TAIL
QUICK CONNECTOR FOR GTOB8
WE NOW
OFFER INSTALLATION, GAS SAFETY TEST AND REPAIR SERVICE BY
SupremeTech.co.uk
ALL
STANDARD GAS FITTINGS ARE 8 mm PAN EUROPEAN EN DIN
SPECIFICATIONS. Imperial 5/16” / 8MM IS COMPATIBLE TO MIX WITHIN
A SYSTEM.
10mm is
a special size used on some German motorhomes but not widely
used in the UK.
Gas leak detector
spray
simple spray test to
check
for small gas joint
leaks.
Easy to use,
essential
safety check, special
non
flammable product for
leak
testing and
pressurised
piping.
GLS400
Gas leak detector
spray 400ml aerosol
GLS100
Small Gas leak
detector spray 100ml
aerosol
|
|
|
|
|
GPC810
8MM Copper
gas pipe.
GPC810CW
8MM
Copper gas pipe.
Outer
sleeved for external use.
|
GSTR8
Straight 8mm
GELB8
Elbow 8mm
GTEE8
Tee 8mm
GSTR10
Straight 10mm
GELB10
Elbow 10mm
GTEE10
Tee 10mm |
GCHN8
6mm hose barb x
8mm olive
fitting
GBHC8
8mm hose barb x
8mm olive fitting
|
|
|
|
|
|
GBARB8
Straight 8mm
barb fits any
fitting or valve
with 8mm olive
to allow
GHP8 hose to be
connected |
GBHC8
Bulkhead
connector 8mm
olive x
8mm hose barb
Secure with p clip.
|
GHP8
High quality 8mm gas hose
orange 20 bar high pressure
|
|
|
|
|
|
GSTUD8
8MM straight
stud connector.
|
Gas bottle
retainer.
G80461
Wall bracket.
G80462
Belt + buckle.
|
Gas joint
sealing compound
Sealing compound
to guarantee gas
joints will seal
properly preventing
gas leaks.
GJSC
gas joint sealing compound
5g tube. |
|
|
|
|
|
Safety valve and
pressure gauge
provides easy
visual leak and bottle
level check.
GSVB
For Butane (pictured left)
GSVP
For Propane (pictured right) |
GVBN
Blanking nut for
manifold valves
GBO
Spare brass 8mm
olive for valves
&
connectors
|
GPC1010
10MM Copper
gas pipe.
(SPECIAL SIZE)
GPC1010W
10MM Copper
gas pipe. Outer
sleeved for
external use.
|
|
|
|
|
|
GEOB8
External gas
outlet box with
quick
connector. Order
separately the
required
hose nozzle see right.
|
PLUG IN GAS
OUTLET
VALVE 8MM
GQCT8
Quick connect tap
outlet +
protection cap
8mm
|
GQCN6
Quick connect
hose nozzle for
6mm id
gas hose
GQCN8
Quick connect
hose nozzle for
8mm id
gas hose
|
|
|
|
|
|
GV8
straight valve (8mm)
GV10
straight valve (10mm)
GVB2
manifold valve 2 way (8mm)
GVB3
manifold valve 3 way (8mm)
|
GVST
Set of symbol stickers
for valve identification
|
GVMB
Mounting bracket
for gas valves
|
|
|
|
|
|
GRP37
PROPANE + NOZZLE
OUTLET 37mbar
1.5 Kg/h
GRP374
Propane 4 kg/h
|
GRB30
BUTANE +
NOZZLE OUTLET
30mbar
1.3 Kg/h
|
GRCG
CAMPING BUTANE
30 mbar 0.8 Kg/h
|
|
|
|
|
|
GLPGWS
LPG WARNING
STICKER. It’s a
requirement to
be affixed to
gas locker
external door or
on outside of
vehicle where
gas is stored,
warning that
LPG gas is
carried on
board.
|
10mm to 8mm
reducer fittings
GSTR810
Straight Reducer
GELB810
Elbow Reducer
GBO10
10MM Olive
GTEE10810
Convertor 10mm
tee side olive is 8mm
|
GPTSS
Standard pressed
steel bottle
spanner
GPTSHD
Heavy duty
professional
forged bottle
spanner
|
|
|
|
|
|
GPMTC
Mini tube cutter
smooth cutting
on 3-22mm
copper pipe
|
GPBEND
Gas pipe bender
for 6, 8 & 10mm
copper
pipe.
|
|
GAS BOTTLE BASE HOLDER
Designed for use with
our bottle holder and straps G80461/2 page 61 to ensure there is
no movement. They are designed to accommodate most types of gas
bottle; The Calor gas type bottle sits inside the top recess and
the 2 inner recesses. The BP gas lite bottle sits inside the top
recess and the 2 outside recess.
G6056
GAS BOTTLE BASE HOLDER
TRUMA GAS REMOTE
SWITCH
Convenient way of
switching off the gas system when it is not in
use.
If the gas system is
not being used, the gas cylinder valves should
always be closed. The
Truma remote gas switch is the ideal solution
to the problem,
particularly for cylinder boxes in caravans and motor
homes that are
difficult to access. Shuts-off entire gas supply from
the interior by the
push of a button, readiness for operation indicated
by an LED on the
control panel. 40 mA power consumption when
valve open (no power
consumption when closed). Connections
8mm male stem inlet &
8mm olive and nut outlet. Electro valve is
completely sealed for
safe installation in gas locker.
GVTESO
TRUMA 12V ELECTRO SHUT
OFF ISOLATION
VALVE FOR GAS SYSTEM
|
|
|
|
|
GPTADBUTPRO
Easy fit
Adaptor co
convert 21.8LH
butane hoses to
fit POL
propane cylinders
|
GADPOLBC
Propane
blanking cap
allows use of
manual or auto
changeover
with only one cylinder
fitted.
|
GADPOL
Remote appliance
adaptor screws
into W20 end
of pigtail
allowing cylinder to
stay in locker
and run a
remote barbeque
with its
own standard
propane
regulator.
|
|
|
|
|
|
GAD20HEX
Hose Extender
21.8LH Male to
W20 Male
adaptor. Use to
join together
another butane
pigtail to
extend. Ideal
for German
vans with bottle
mounted
regulators to
reach a remote
small cylinder |
GAD218ELB
Fits directly on
outlet of a
Gaslow
cylinder
preventing
dangerous
over-stressing
and kinking of
Stainless Steel
pigtails in
restricted areas. It
also fits all
the Butane
pigtails &
adaptors. |
BUTANE PROPANE
ADAPTOR - GADPOLBUT
ADAPTOR TO
CONVERT ANY BUTANE THREADED OR REFILLABLE
BOTTLE TO USE YOUR EXISTING
PROPANE PIGTAILS
|
|
|
|
|
|
GAD20WASH
SPARE
W20 WASHER FOR
PIGTAILS (5p not
included!) |
GV20
INLINE W20 GAS
TAP
|
GAD20ELB
ELBOW
W20 NUT & W20
THREAD
|
|
|
|
|
|
GAD20CAP
W20
FEMALE THREAD
BLANK CAP |
GAD20FEM
W20 NUT
double female
connector |
GAD208H
W20 NUT X
MALE 8MM HOSE
BARB. |
|
|
|
|
|
RUBBER LINED
PIPE CLIPS
GPCLIP10
10MM RUBBER LINED P CLIP
GPCLIP8
8MM RUBBER LINED P CLIP
GPSADL810
8 – 10MM RUBBER LINED SADDLE CLIP |
INLINE GAS QUICK
CONNECTOR
GQCSTR8
8MM INLINE QUICK CONNECTOR
GQCN8
Quick connect 8mm hose nozzle
|
PTFE THREAD
SEALING TAPE
GPTFE
ROLL OF PTFE THREAD SEALING
TAPE. 12mm WIDE x 0.075mm
THICK
|
GASLOW 300 UNIVERSAL REGULATOR
Regulator failure...
There’s no warning and the effects are devastating.
Where can you find a
replacement? It’s almost impossible at short notice!....and then
there’s
the cost!....and what
stops it happening again?
We guarantee it won’t
happen! Why
take the risk?
Replace it now and guarantee it won’t happen to you.
Then you can keep
your replaced regulator in your locker... it may not have a
warranty but
it could help someone
else when they have a problem!
The Gaslow 300
caravan regulator is a superior regulator which can work with
both Butane
and Propane gas. The
system comprises a 30mbar wall mounted regulator with 750mm
Stainless Steel Hose
for Gaslow Refillables or butane cylinders and also a
GPTADBUTPRO
adaptor for Propane.
Includes a guaranteed
FIVE YEAR WARRANTY
GREG1775
30mbar Caravan Regulator
System Kit - 8mm copper
GREG1770
30mbar Clesse Caravan
Regulator Only - 8mm copper
