VEHICLE MAKE
|
TANK CODE & NAME (KIT TYPE) |
APPROXIMATE FITTING POSITION (PLEASE
MEASURE ) |
|
CITROEN C25 |
084 SEVEL (F) 68 lit
(11) |
AT REAR BEHIND AXLE |
|
TALBOT EXPRESS |
065 VILLA (W) 41 lit
(13) |
IN CENTRE IN FRONT OF REAR AXLE |
|
FIAT DUCATO 1 & 2 UP TO 94 |
|
|
|
CITROEN RELAY TO 01 |
123 BOXER (F) 59 lit
(11) |
EXTERNALLY BELOW PASSENGER SEAT |
|
PEUGEOT BOXER TO 01 |
121 RELAY (W) 41 lit
(13) |
IN CENTRE IN FRONT OF REAR AXLE |
|
FIAT DUCATO 3 / 94 TO 01 |
|
|
|
CITROEN RELAY 01 06 |
123 BOXER (F) ALL 59 lit
(11) |
EXTERNALLY BELOW PASSENGER SEAT |
|
PEUGEOT BOXER 01 06 |
194 DUCATO (W) ALL 36 lit
(13) |
IN CENTRE IN FRONT OF REAR AXLE |
|
FIAT DUCATO 4 / 01 06 |
197 C197 (F) LWB ONLY 59 lit
(11) |
CENTRE & SIDE IN FRONT OF N/S REAR WHEEL |
|
CITROEN RELAY 06 ON (X250) |
223 (F) MWB & LWB 66 lit
(8) |
N/S BETWEEN CHASSIS & HANDBRAKE ROD |
|
PEUGEOT BOXER 06 ON (X250) |
233 (F) XLWB ONLY 91 lit
(7) |
N/S BETWEEN CHASSIS & HANDBRAKE ROD |
|

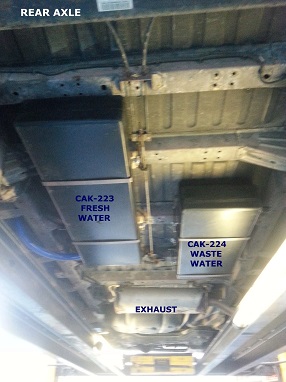

FIAT DUCATO 5 / 06 ON (X250) |
224 (W) MWB & LWB 50 lit
(11) |
O/S BETWEEN CHASSIS & HANDBRAKE ROD |
|
|
223 (W) XLWB ONLY 56 lit
(8) |
O/S BETWEEN CHASSIS & HANDBRAKE ROD |
|
PEUGEOT EXPERT 2007 ON |
229 (F) EXPERT- 40 lit
(12) |
(APPROX BETWEEN CHASSIS & EXHAUST) |
|
CITROEN DISPATCH 2007 ON |
230 (W) DESPATCH - 21 lit
(11) |
(APPROX BETWEEN CHASSIS & EXHAUST) |
|
FIAT SCUDO 2007 ON |
232 (F) SCUDO FRESH -29 lit
(13) |
(APPROX BETWEEN CHASSIS & EXHAUST) |
|
|
231(W) SCUDO WASTE -19.5 lit
(14) |
(APPROX BETWEEN CHASSIS & EXHAUST) |
|
FORD TRANSIT 86 to 91 |
088 N G T TANK (F) 50 lit
(12) |
O/S BEHIND DRIVERS STEP |
|
FORD TRANSIT 91 ON SWB |
088 N G T TANK (F) 50 lit
(12) |
O/S BEHIND DRIVERS STEP |
|
|
086 BB5 (W) 20 lit
(15) |
N/S BEHIND FUEL TANK |
|
FORD TRANSIT 91 ON LWB |
088 N G T TANK (F) 50 lit
(12) |
O/S BEHIND DRIVERS STEP |
|
|
078 HB13 / 082 SB12 (W) 52/50 lit
(9 / 9) |
N/S BEHIND FUEL TANK |
|
TRANSIT 2001 SWB FWD |
190 TRANSIT 2000 (F) 54 lit
(8) |
O/S BEHIND DRIVERS STEP |
|
|
191 OR 192 (W) 30 lit
(12 / 15) |
N/S TOWARDS REAR HALF OF STEP & CHASSIS |
|
TRANSIT 2001 MWB RWD |
045 MERC 307 (F) 54 lit
(9) |
O/S BEHIND DRIVERS STEP |
|
|
(W) |
|
|
TRANSIT 2001 LWB RWD |
126 DART (F) 73 lit
(8) |
O/S BEHIND DRIVERS STEP |
|
|
061 A10 (W) 41 lit
(10) |
N/S BEHIND FUEL TANK |
|
LDV CONVOY (PEUGEOT ENG) |
137 TRENT (F) 77 lit
(8) |
O/S BEHIND DRIVERS STEP (CHECK EXHAUST) |
|
(FORD ENGINE) |
126 DART (F) 73 lit
(8) |
O/S BEHIND DRIVERS STEP (CHECK LENGTH) |
|
|
020 WAFER (W) 36 lit
(16) |
|
|
LDV PILOT/ 200 |
014 LEYLAND/ SHERPA (F) 64 lit
(11) |
O/S BEHIND DRIVERS STEP |
|
MERC 207/8 307/8/10 407/8 PRE 95 |
045 MERC 307 (F) 54 lit
(9) |
OPPOSITE POSITION TO FUEL TANK |
|
SPRINTER/ NEW LT - PETROL |
154 SPRINT PETROL (F) 50 lit
(7) |
O/S BEHIND & BELOW DRIVERS STEP |
|
SPRINTER/ NEW LT - DIESEL |
148 SPRINT DIESEL (F) 58 lit (10) |
O/S BEHIND DRIVERS STEP |
|
|
149 MBSW (W)
(13) |
N/S BEHIND FUEL TANK |
|
NEW SPRINTER 06 / CRAFTER |
(F) 045 MERC-50 lit
(9) / 126 DART - 68 lit
(8) |
|
|
|
(W) 088 NGT-50 lit
(12) / 065 VILLA-34 lit
(13) |
|
|
RENAULT TRAFFIC |
063 A13 (F) 50 lit
(9) |
N/S UNDER SIDE DOOR FLOOR |
|
VAUXHALL ARENA |
035 MK II VW SM (W) 36 lit
(8) |
CENTRALLY MOUNTED |
|
RENAULT NEW TRAFFIC 07/01 ON |
209 TRAFFIC 50 lit
(11) |
CENTRALLY BEHIND FUEL TANK |
|
VAUXHALL VIVARO |
208 VIVARO 40 lit
(11) |
CENTRALLY IN FRONT OF FUEL TANK BELOW CAB FLOOR |
|
|
210 VIVARO SKIRT 20 lit
(14) |
N/S UNDER SKIRT |
|
RENAULT MASTER 99
-2011 |
193 MOVANO (F) MWB & LWB 61 lit
(11) |
CENTRE IN FRONT OF REAR AXLE |
|
VAUXHALL MOVANO
TO 2011 |
221 MASTER (W) 36 lit
(12) |
BETWEEN FRESH TANK 193 & IN FRONT OF AXLE |
| |
065 VILLA (W) 31 lit
(13) |
BEHIND AXLE |
|
MOVANO
& MASTER 2011 on |
034 MK II VW LRGE (F) -52
lit
(7) |
CENTRE IN FRONT OF REAR AXLE |
| |
063
A13 (W) 50 lit (9) |
CENTRE IN FRONT OF REAR AXLE |
|
|
126
DART (W) 68 lit (8) |
O/S
BEHIND SKIRT (removing thin plates) |
|
VW OLD LT TO 96 |
022 VW LT FRESH 68 lit
(13) |
O/S BEHIND DRIVERS FRONT JACK POINT |
|
|
021 VW LT WASTE 54 lit
(15) |
O/S FOLLOWS ON BEHIND FRESH |
|
VW T2S 80 TO 90 |
045 MERC 307 (F) 54 lit
(9) |
N/S BEHIND SKIRT UNDER SLIDING DOOR |
|
|
065 VILLA (W) 31 lit
(13) |
O/S
BEHIND SKIRT |
|
VW T4 1990 On |

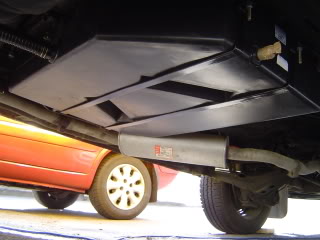

079 T4 TANK (F) 59 lit
(11) |
CENTRALLY TO REAR OF FUEL TANK |
|
|
096 VISION (W) 41 lit
(10) |
BELOW SLIDING DOOR STEP |
|

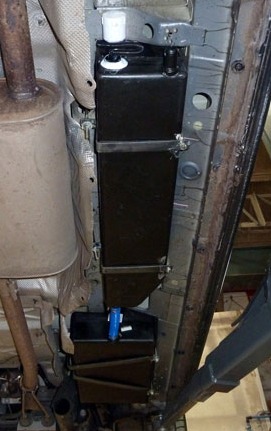

VW T5 Approx 2003 On |
204 T5 STEP 29 lit
(14)
205 SKIRT TANK (F) 22 lit
(12) |
TWIN TANKS O/S UNDER DRIVERS STEP & SKIRT |
|
|

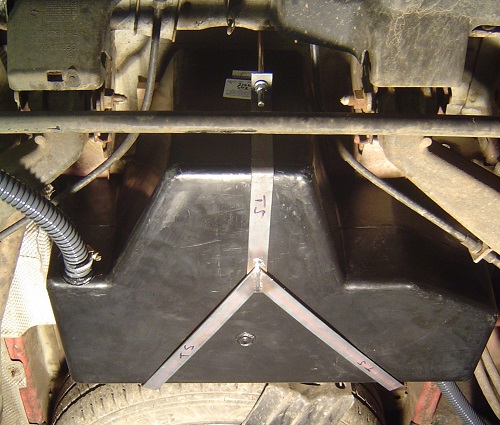

203 T5 WASTE (W) 46 lit
(14) |
CENTRE REAR IN FRONT OF SPARE WHEEL NOT SYNCHRO. |
|
|
206 / 214 T5 INTERNAL (F) 54/41 lit
(12) |
DESIGNED TO FIT UP TO AND OVER REAR WHEEL ARCH |
